Truth Ellipse (15 Series) Single Arm Casement Operator 13-1/2" Arm (Left Hand)
- Brand
- AmesburyTruth
- SKU:
- WO-6525L
- Availability:
- Usually ships within 24 hours.
- Model:
- 15.32.XX.261
- Series:
- Ellipse (15 Series)
- Handing:
- Left
- Mounting:
- Sill Mount
- Arm Length:
- 13-1/2"
Truth Ellipse (15 Series) Single Arm Casement Operator 13-1/2" Arm (Left Hand)
SKU: WO-6525L
The Truth Hardware (AmesburyTruth) 15 Series Ellipse Left Hand 13-1/2" Single Arm Casement Window Operator (15.32) is designed for use in casement windows with complimentary AmesburyTruth 14 Series Casement Window Hinges. Commonly referred to as a window crank, window mechanism, or window opener, the Truth 15.32 left handed window operator is engineered for window sashes weighing no more than 55 lbs (25 kg), measuring between 20" to 24" (508 mm - 610 mm) wide, and up to 65" (1651 mm) high.
LOOK FOR THE STAMP
Commonly found with 45251 stamped on the arm. Alternatively, you may encounter one the following stamp(s) on the operator: 40051, 40052, and FASCO branded markings: 239135L, or 239135R.
| SKU | Truth Hardware Part Number | Colour | Visual Example | Add to Cart |
|---|---|---|---|---|
| WO-6525LW | 15.32.32.261 | White | Add to Cart | |
| WO-6525LC | 15.32.11.261 | Coppertone | Add to Cart | |
| WO-6525LA | 15.32.01.261 | Aluminum | Add to Cart |
ADD-ONS / ACCESSORIES
Select an add-on or accessory category to see more products.
| Gasket for Ellipse Single Arm Operator | SKU | Truth Part Number | Add to Cart |
|---|---|---|---|
|
CH-6866 | 21504 | Add to Cart |
| Truth Traditional Window Handle | SKU | Truth Part Number | Colour | Visual Example | Add to Cart |
|---|---|---|---|---|---|
|
CH-6710W | 10579.32 | White | Add to Cart | |
| CH-6710C | 10579.11 | Coppertone | Add to Cart | ||
| CH-6710BZ | 10579.03 | Bronze | Add to Cart |
| Truth Folding Window Handle | SKU | Truth Part Number | Colour | Visual Example | Add to Cart |
|---|---|---|---|---|---|
|
CH-6715W | 11329.32 | White | Add to Cart | |
| CH-6715C | 11329.11 | Coppertone | Add to Cart | ||
| CH-6715BZ | 11329.03 | Bronze | Add to Cart |
| Truth T-Shape Window Handle | SKU | Truth Part Number | Colour | Visual Example | Add to Cart |
|---|---|---|---|---|---|
|
CH-6735W | 11573.32 | White | Add to Cart | |
| CH-6735C | 11573.11 | Coppertone | Add to Cart |

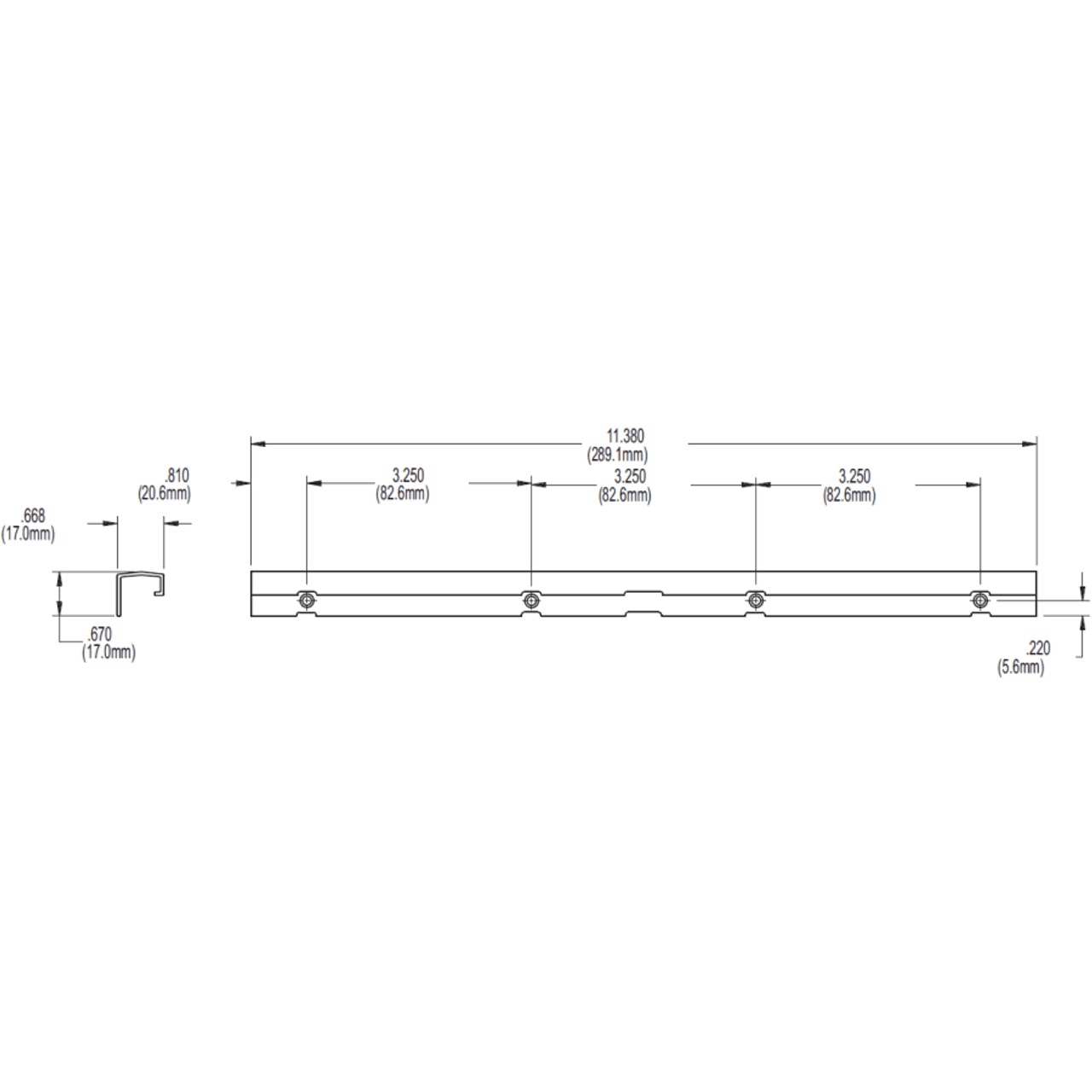

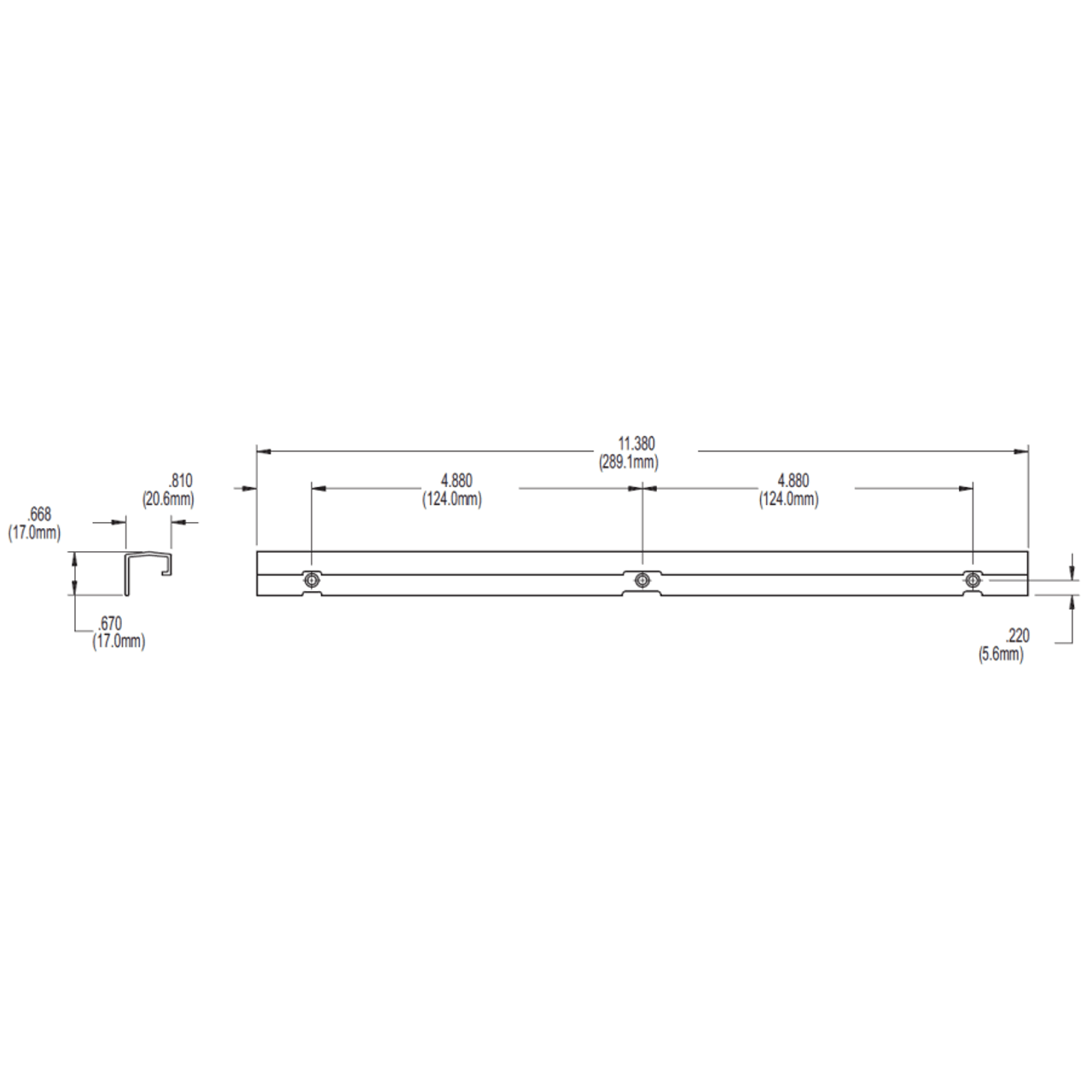

| Truth 11-3/8" Single Arm Operator Track | SKU | Truth Part Number | Mounting | # of Mounting Holes | Add to Cart |
|---|---|---|---|---|---|
|
CH-6765-3 | 30706 | Face Mount | 3 | Add to Cart |
|
CH-6765-4 | 30473 | Face Mount | 4 | Add to Cart |

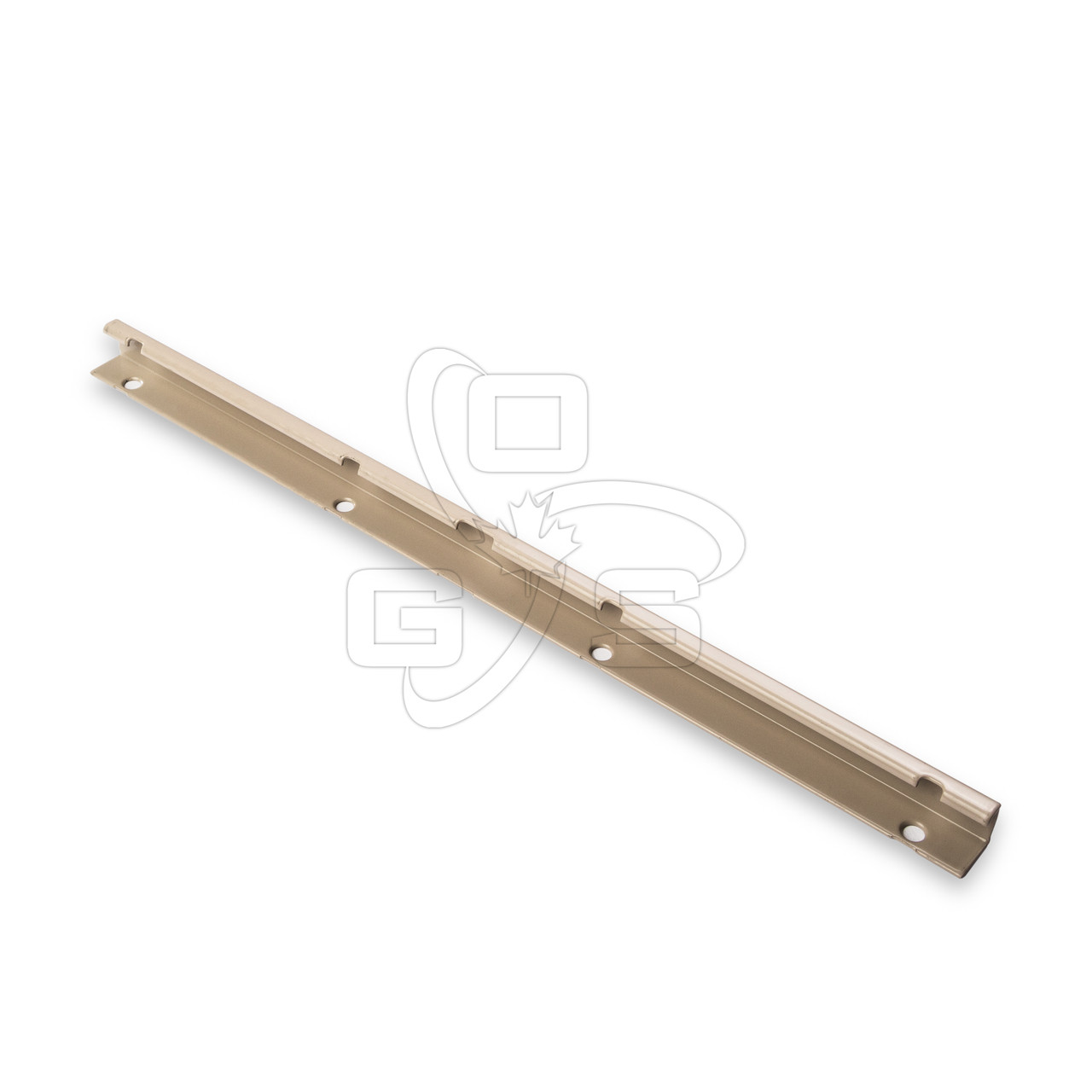

| Truth 13-3/4" Single Arm Operator Track | SKU | Truth Part Number | Mounting | # of Mounting Holes | Add to Cart |
|---|---|---|---|---|---|
|
CH-6766 | 30150 | Face Mount | 4 | Add to Cart |
COLOUR (FINISH)
SELECTION
For additional colours or finishes, please consult the Truth Hardware colour chart.
RECOMMENDED SCREWS
Wood: #10 x 1" Phillips, Flat Head,
Sheet Metal Screws.
PVC
& Metal: #10 Phillips, Flat Head Screws (length and thread type determined by profile).
COMPATIBLE
Interchangeable with Traditional Single Arm 13-1/2" Casement Window Operator.
To determine the handing (i.e. left hand or right hand) of the operator, identify the side of the casement window that contain the locks when viewing the window from the interior, or determine the side that contains the hinges when viewing the window from the exterior.
DOCUMENTATION
For additional information please consult the product document(s) below. Should you have any questions or require any assistance, please contact us.
