MRTALPCH Low-Profile 6 Pad Channel Lifter
Contact us at 905-652-2772
- Brand
- Wood's Powr-Grip
- SKU:
- WPG-98738
- Availability:
- Usually ships within 24 hours.
- Model:
- MRTALPCH611LDC3
- Series:
- MRTALPCH Lifter Series
- Industry:
- Glass
- Industry:
- Insulated Metal Panels
- Load Capacity:
- 1100
- Load Capacity:
- 900
- Material Surface:
- Smooth
- Material Surface:
- Curved
- Material Surface:
- Textured
- Lifter Motion:
- Rotator/Tilter
- Lifter Weight:
- 130

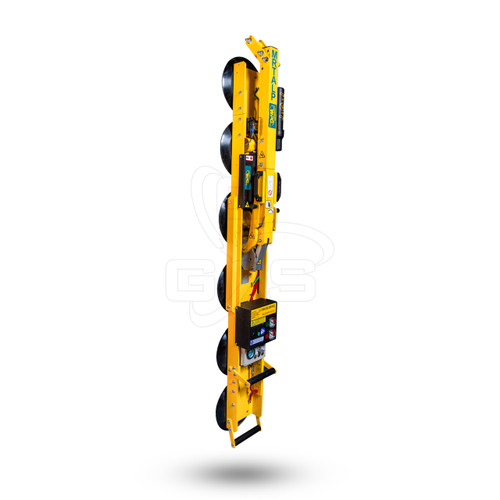

MRTALPCH Low-Profile 6 Pad Channel Lifter
SKU: WPG-98738
Wood's Powr-Grip®'s low profile MRTALPCH Dual Vacuum System (DVS) lifter series is a versatile alternative to Powr-Grip's popular P1 lifter series that provides the flexibility of using either a 6-pad or 4-pad configration in a slim 7-3/4" profile thickness. Ideal for working with flat, curved, and textured materials such as glass, sheet metal, and insulated metal panels, the adaptability of this rotator/tilter makes it an ideal choice for fitting in narrow spaces.
ROTATOR
& TILTER
The Wood's Powr-Grip® Low Profile Manual Rotator/Tilter 1100 with Pad Channel Dual Vacuum System Edition (MRTALPCH611DC) offers manual 180° rotation, with locking at each 1/4 turn and 90° assisted tilt between upright and flat.
WEIGHT CAPACITY
900 lbs
(410 kg) [6 Pads]
600 lbs
(272.15 kg) [4 Pads]
900 lbs
(410 kg) [6 Pads]
600 lbs
(272.15 kg) [4 Pads]
TEMPERED
CALCULATOR
Calculate tempered glass weight here.
ADD-ONS /
ACCESSORIES
Select an add-on or accessory category to see more products.
| G3370 11" Vacuum Pads for Flat Surfaces | SKU | Diameter | Compound Type | Material Porosity | Load Capacity | Add to Cart |
|---|---|---|---|---|---|---|
|
WPG-49646T | 11" (279.4 mm) | Std. Rubber | Nonporous | 175 lbs (79 kg) |
| G0750 10" Vacuum Pads for Curved Surfaces | SKU | Diameter | Compound Type | Material Porosity | Load Capacity | Add to Cart |
|---|---|---|---|---|---|---|
|
WPG-49586TA | 10" (254 mm) | Std. Rubber | Nonporous | 150 lbs (68 kg) | Add to Cart |

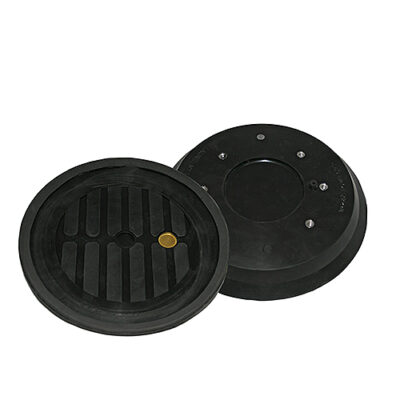

| HV11F 10" Vacuum Pads for Textured Surfaces | SKU | Diameter | Compound Type | Ideal Surfaces | Load Capacity | Add to Cart |
|---|---|---|---|---|---|---|
|
WPG-49614T | 10" (254 mm) | Std. Rubber | Textured / Irregular | 150 lbs (68 kg) |

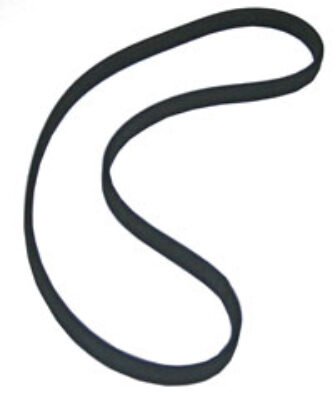

| 54212 | SKU | Colour | Surface Irregularity Depth | Abrasion Resistance | Add to Cart |
|---|---|---|---|---|---|
|
WPG-54212 | Black | 1/8" (3.175 mm) | Normal |
| 59906 | Attach Function | Release Function | Range | Add to Cart |
|---|---|---|---|---|
|
Yes | Yes | Up to 250 ft | Add to Cart |
DOCUMENTATION
For additional information please consult the product document(s) below. Should you have any questions or require any assistance, please contact us.
EXTENDED
DETAILS
Select the material and texture that you will be lifting.

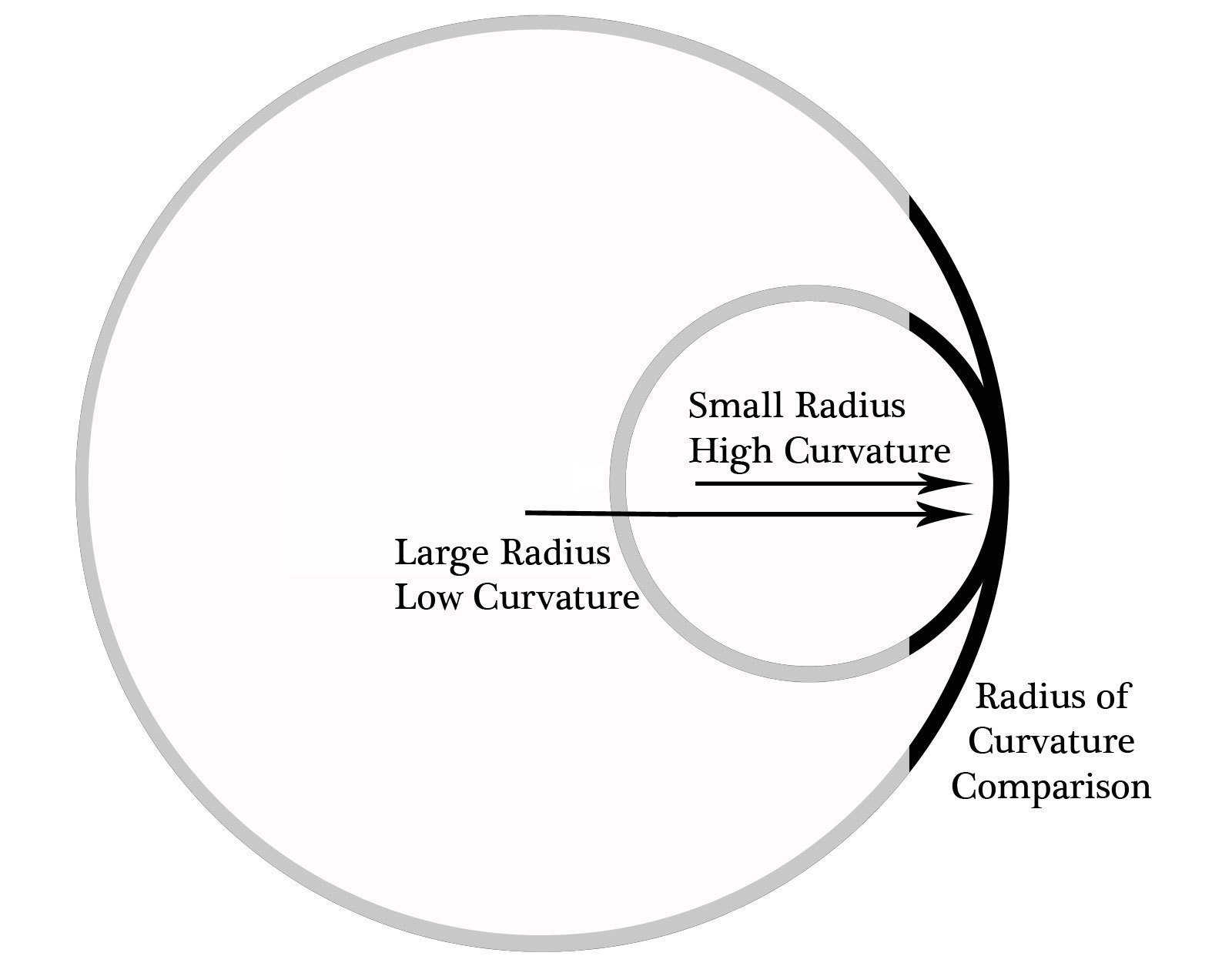

| 49586TA | Max. Capacity per Pad | Min. Radius of Curvature | Min. Material Thickness | Max. Elevation |
|---|---|---|---|---|
 |
150 lbs (68 kg) | 13" (330 mm) | 1/4" (6.35 mm) | 5000' (1500 m) |
| 49646T | Max. Capacity per Pad | Surface Curvature | Material/Ambient Temp. Range | Rubber Type |
|---|---|---|---|---|
 |
175 lbs (79 kg) | Flat | 32° - 100°F (0° - 38° C) | Standard |
COLD WEATHER
WARNING
